Small Yet Powerful
Robust solution for creating highly accurate 3D models with precision detail

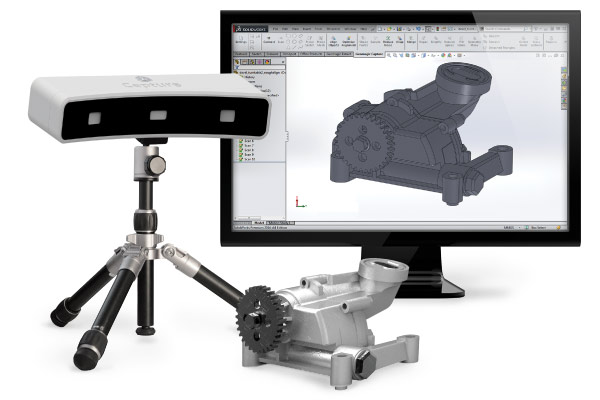

Geomagic Capture is a powerful system for scan-based design or quality inspection. The system consists of a compact blue light LED 3D scanner along with application-specific software for end-to-end integration. With its unprecedented performance and affordability, the 3D scanner sets a new standard for design-to-manufacturing productivity and utility.
![Compact and Portable](/wp-content/uploads/2015/09/compact-and-portable.png)
Compact and Portable
Fits easily on a desk, yet it’s rugged enough for the shop floor. Transport the scanner in your carry-on for travel convenience.
![Truly Affordable](/wp-content/uploads/2015/09/truly-affordable.png)
Truly Affordable
Get the accuracy, scanning size envelope, and ease of use you need to adopt scan-based design or inspection for your business.
![Simple Setup](/wp-content/uploads/2015/09/easy-as-123.png)
Simple Setup
No calibration or other setup is required. Simply take it out, plug it in, install the software, and you’re ready to scan.
A Complete Package
3D Scanning to Industry Use

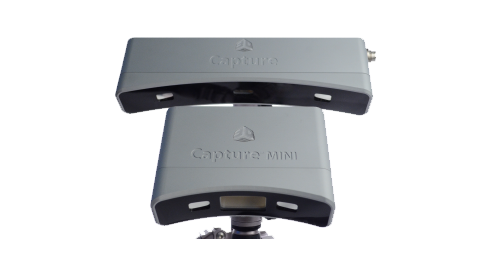

3D Capture Hardware
Portable desktop 3D scanner
(Select from either Capture or Capture Mini Model)
![Capture Hardware](/wp-content/uploads/2015/09/geomagic-capture-units.png)

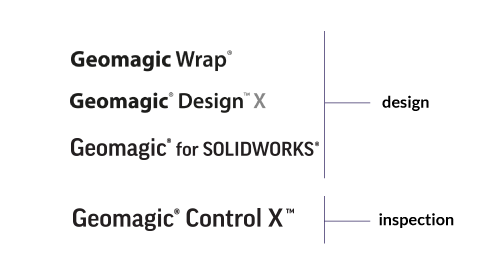

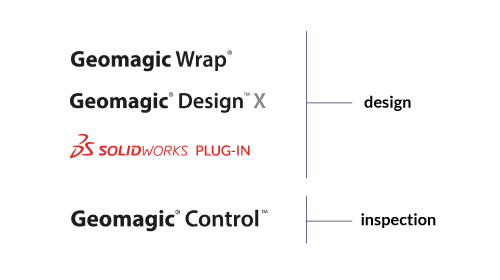

Geomagic Software
Acquires scan data and delivers advanced post-processing capabilities
(Select from Wrap, Design X, SolidWorks Plugin, or Control)
![Geomagic Software Chart](/wp-content/uploads/2019/02/geomagic-software-selection.png)
3D Scanner Model Comparison
Select the scanner according to the part size you plan to scan
![Geomagic Capture scanner](/wp-content/uploads/2015/08/geomagic-capture.png)

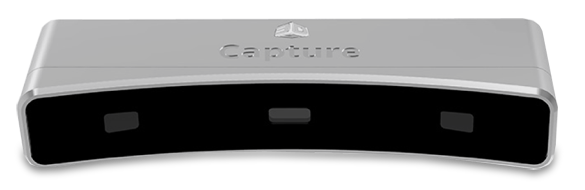

Geomagic Capture
Scan Target Size
Scans objects the size of a shoebox. Alignment targets available for scanning large parts.
Accuracy
60 microns within the field of view.
![Geomagic Capture Mini scanner](/wp-content/uploads/2015/08/geomagic-capture-mini.png)

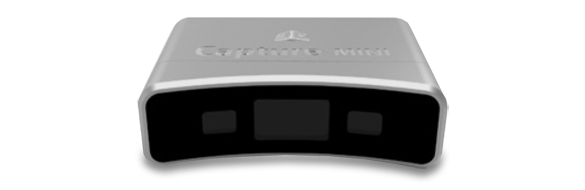

Geomagic Capture Mini
Scan Target Size
Scans small objects requiring extra precision: electronic components, jewelry, dental molds.
Accuracy
34 microns within the field of view.
Software Comparison
Select your downstream application
![Geomagic Software screenshot](/wp-content/uploads/2015/08/geomagic-control-3d-inspection.jpg)
Geomagic Capture for Wrap
Scan-based design
Scan, mesh, and surface objects into 3D models in minutes: point cloud, mesh editing, automatic, and exact surfacing tools.
Includes:
Capture or Capture Mini Geomagic Wrap software
Geomagic Capture for Design X
Scan-based design
Create CAD models and transfer them with complete feature trees, to Siemens NS, PTC Creo, Pro/E, Inventor, and SolidWorks.
Includes:
Capture or Capture Mini Geomagic Design X software
Geomagic Capture for SolidWorks (plug-in)
Scan-based design
Start with existing objects to create new products or alter old ones. Save valuable time without designing from scratch.
Includes:
Capture or Capture Mini SolidWorks add-in software

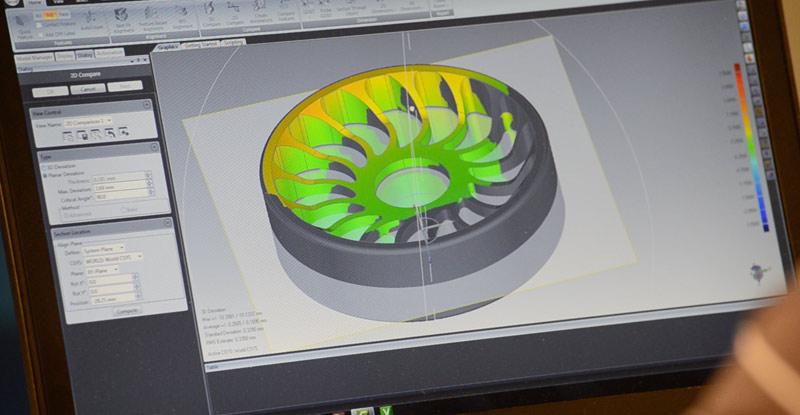

Geomagic Capture for Control
Scan-based inspection
Rapid automated inspection of multiple samples of the same part. Program it once and let Control do the inspection.
Includes:
Capture or Capture Mini Geomagic Control software
![Geomagic Capture](/wp-content/uploads/2019/02/geomagic-capture-with-monitor.jpg)
Request A Quote
Request Geomagic Capture pricing information.
